Silent-E PRO 3.4M (F5J) (#0095)

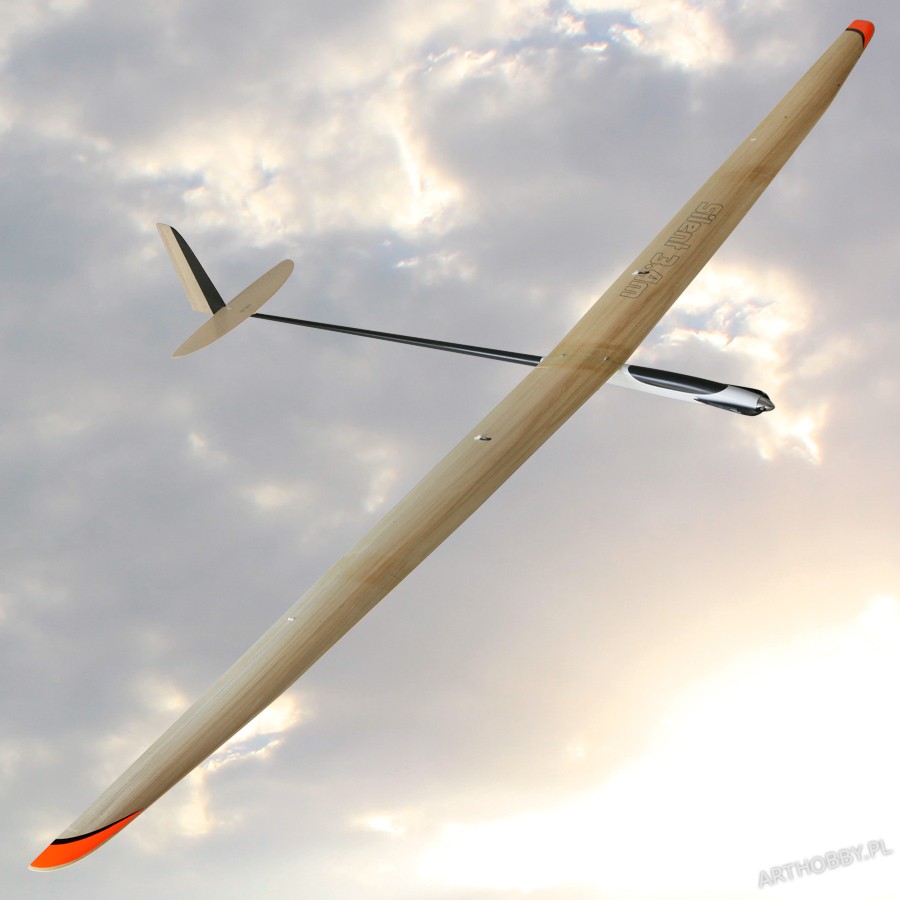

Silent-3.4M Ultra light weight electro-glider F5J class. It’s clean low drag design provides excellent air penetration with wide range of speed and flying weight ~1330 g (~46 oz.) makes it an ultimate thermal electro-glider. This original, and very modern construction is a statement to years of experience in designing and active competition.

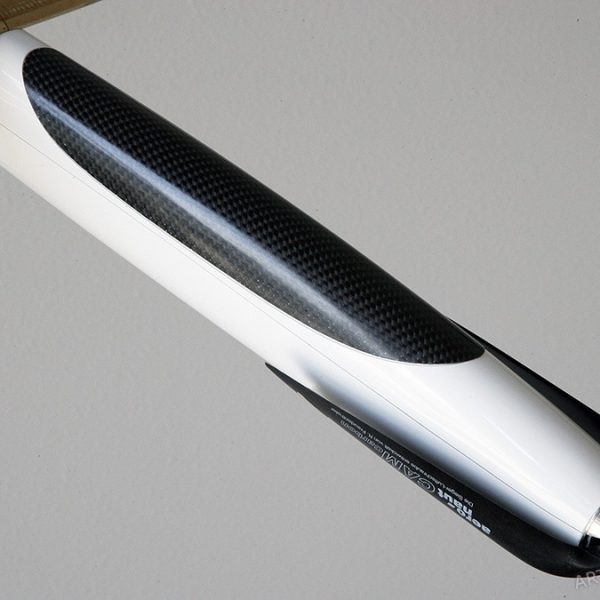

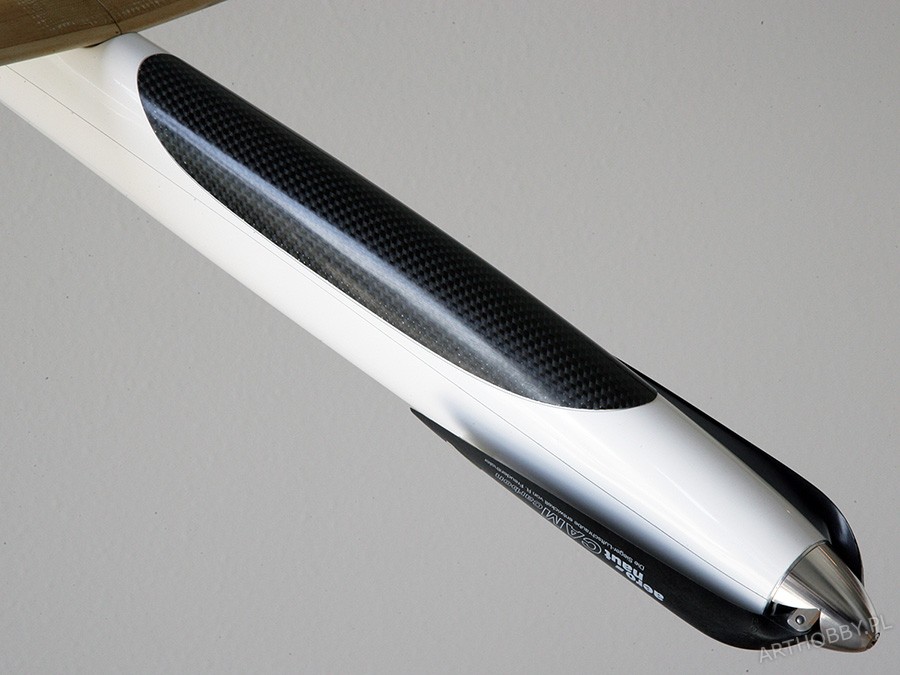

The Fuselage pod and vertical stabilizer are made from pre-painted, molded, composite materials (epoxy/glass-carbon-fiber).
The Fuselage pod features removable Canopy for easy access to radio and drive gear and is 2.4GHz friendly.
Its strong tapered tail boom is made of carbon-glass-fiber composite.
The wing cores are precision cut from special high-density white polystyrene foam and for superb strength wings have molded in carbon/glass composite spars.
The black poplar veneer is bonded to the foam with aircraft industry grade epoxy in high pressure mold for perfect airfoil fidelity and warp-free wing. Our original 3-segments wing design is very strong and convenient, internally hinged ailerons and flaps are minimizing the building time. The horizontal stabilizer with pre-hinged elevator and rudder are made from selected balsa wood and fully laminated. The removable horizontal stabilizer and 3-segment wing allows easy storage and transport flexibility.

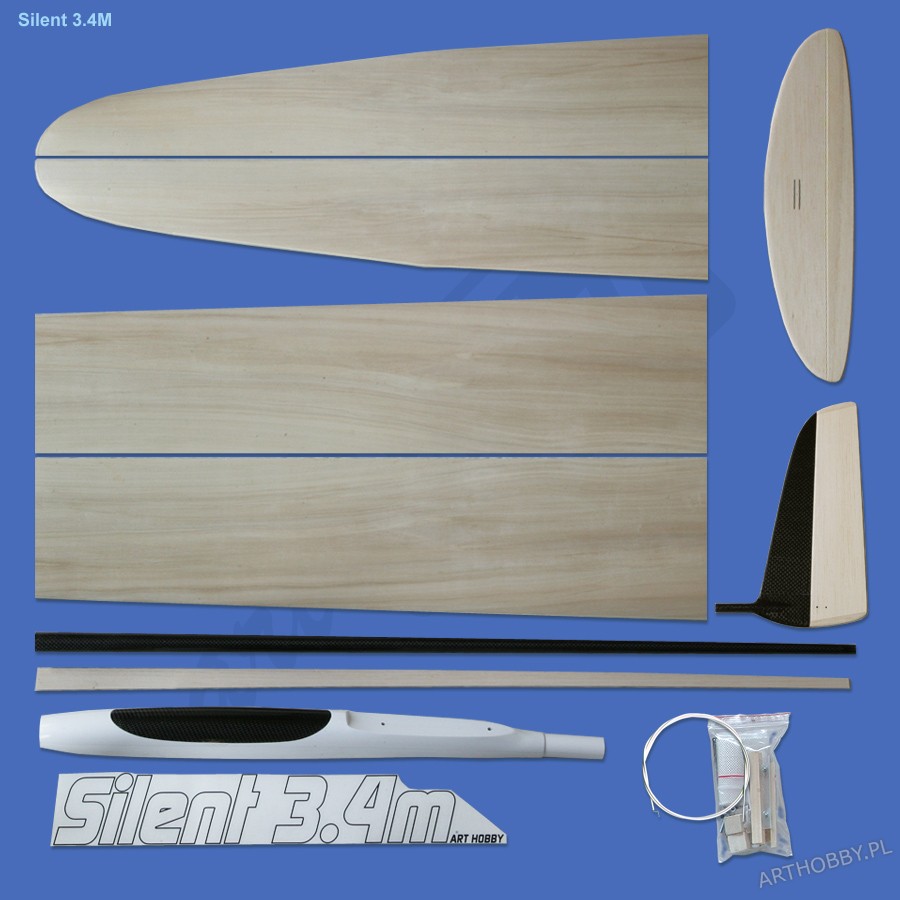

Kit contains:

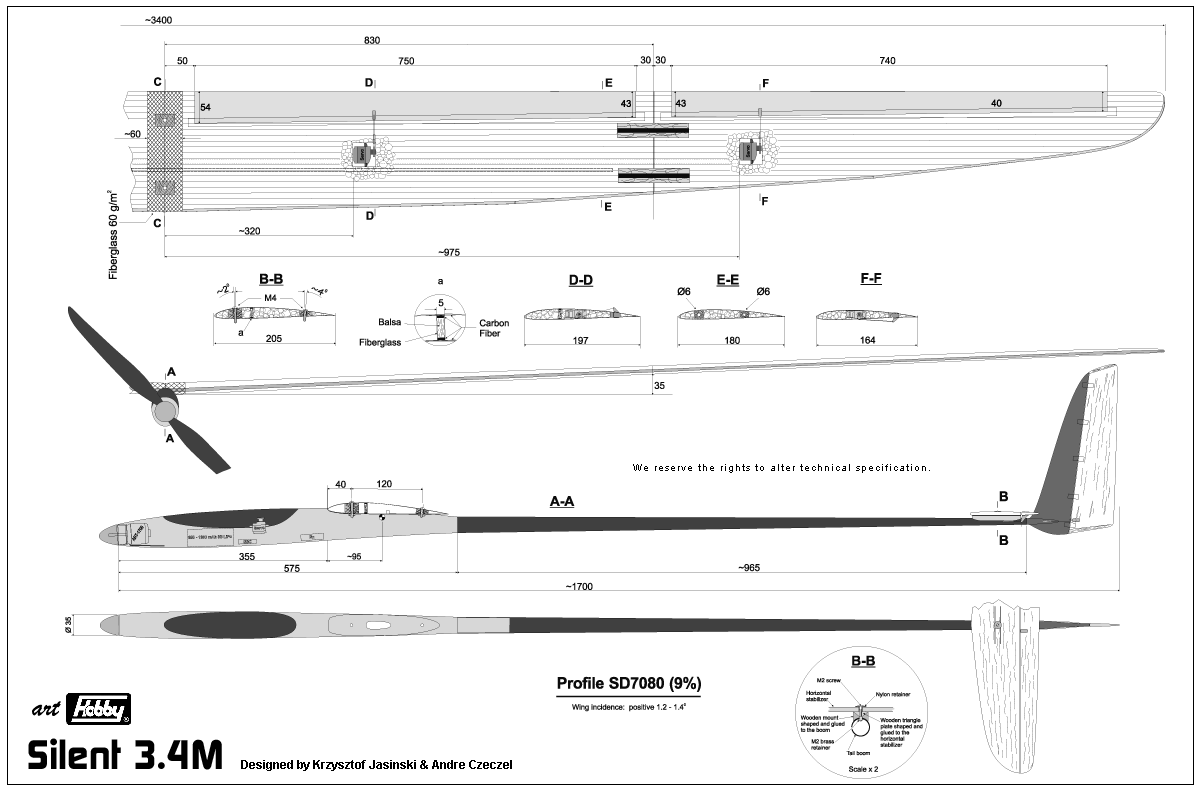

model, plans, step by step instructions, all necessary hardware and glider name wing sticker.
NOTE: Wing version with Aileron and Flaps is also available.

The waiting time for the delivery of 2.5M+ models is 3-8 days.

$ 493.67

Dostępne:

In stock

Description

Wing span 3400 mm / 133.85 in.
Length ~1730 mm / ~68.11 in.
Wing area 56 dm² / 868 sq.in.
Wing airfoil OP 08300-modified
Wing Load ~23.75 g / dm²
Glider weight ~796 g / ~27.92 oz.
Weight in flight ~1330 g /~46.66 oz.

Additional information

Weight 2 kg
